Additional Images:
Front Panel Pinout

Found in the following systems:
7935, 7940, 7947, 7970, 7985, 7994, 7998, 7AP140, 7AP170, 7AP190, 7AP195, 7EL180 Thailand, 7000CTO models

Maintenance and Service Guide:
http://www.compaq.com/athome/support/msgs/7ep-7ap/

Retail Board:

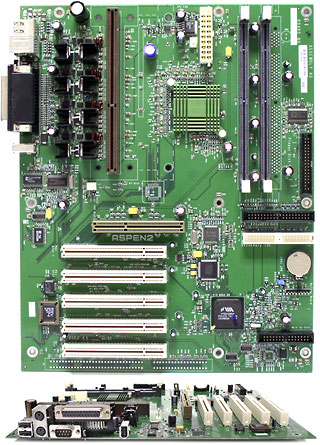

This motherboard is an OEM version of the FIC SD11.
http://www.fic.com.tw
http://www.fica.com

Notes:
- The bios program has been altered to a Compaq specific version. It is not recommended to flash back to the original. If anyone does this successfully please notify us by email.
