Note

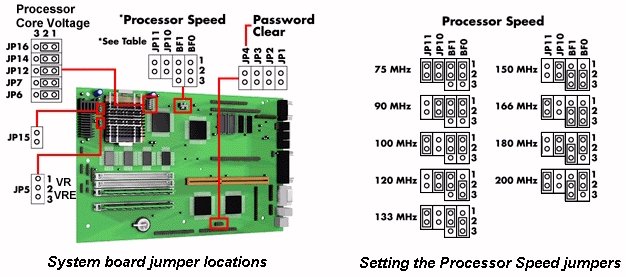

The row of 5 jumpers for the core voltage (JP16/14/12/7/6) need to be set all at once. Short pins 3-2 for MMX CPU, pins 2-1 for non-MMX.
Note
The row of 5 jumpers for the core voltage (JP16/14/12/7/6) need to be set all
at once. Short pins 3-2 for MMX CPU, pins 2-1 for non-MMX.
Short JP15 for MMX, open JP15 for non-MMX Pentium.
