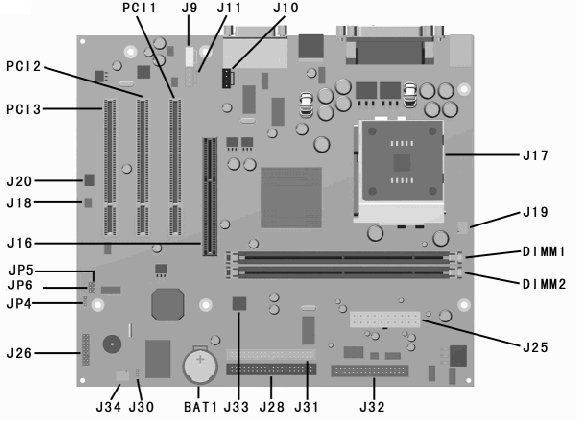

Evo D300v System Board, Type 1 |
Spare Part Number: 251614-001
| BAT1 | External battery | J26 | Power-On switch and LED connector |
| DIMM 1-2 | Memory slots | J28 | Primary IDE connector |
| J9 | Aux audio in connector | J30 | Chassis intrusion connector |
| J10 | CD audio in connector | J31 | Secondary IDE connector |
| J11 | Modem in (audio) connector | J32 | Diskette drive connector |
| J16 | AGP card socket | J33 | Chassis fan |
| J17 | Processor | J34 | System fan (power supply) |
| J18 | Wake on Ring | JP4 | ROM BIOS lock |
| J19 | Processor (CPU) fan | JP5 | Safe mode |
| J20 | Wake on LAN connector | JP6 | Clear CMOS jumper |
| J25 | Main power connector | PCI 1-3 | PCI card sockets |
Evo D300v System Board, Type 2 815E |
| BAT1 | External battery | J27 | Memory slots |
| J8 | Aux audio in connector | J28 | Memory slots |
| J9 | Mono audio out | J30 | Main power connector |
| J13 | CD audio in connector | J31 | Chassis intrusion |
| J14- J16 | Expansion card sockets | J32 | Secondary IDE connector |
| J17 | Chassis fan | J34 | Primary IDE connector |
| J19 | AGP card socket | J35 | Diskette drive connector |
| J21 | Wake-on LAN connector | J36 | Power-On switch and LED connector |
| J22 | Processor socket | JP11 | ROM BIOS lock |
| J24 | System fan | JP22 | Safe Mode |
| J25 | CPU fan | SW1 | CMOS reset button |
| Note 1: Default
shipping configuration is with Pins 2 & 3 jumpered.
Note 2: Default shipping configuration is with Pins 1 & 2 jumpered |
|||
